Water / ground source heat pump system
Water / ground source heat pump system

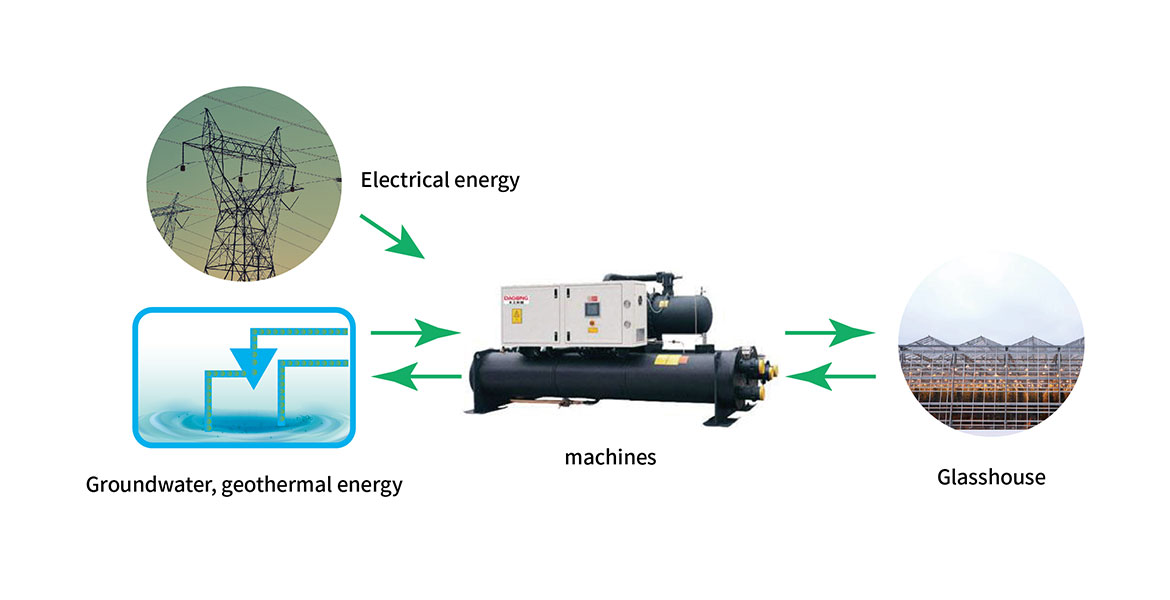

Combined with the project resources, it can be used in the rivers, lakes, shallow groundwater and deep high temperature groundwater in the location of the project for heating, which is not affected by the environment and climate. It has outstanding advantages for projects in extremely cold areas and has significant energy saving effect.
Parameters
| Energy form | Model | Heating capacity/KW（Room temperature/low temperature） | Max. input power kW | Max. heating water Temperature ℃ | Heating area/㎡（Room temperature/low temperature） |
|---|---|---|---|---|---|
| WWA | MP260PWN2 | 258 | 60 | 60 | 1200 |
| MP1030PWN2 | 1028 | 230 | 5140 | ||
| MP1800PWN2 | 1803 | 401 | 9015 | ||
| MP3940PWN2 | 3938 | 875 | 20000 |
| Energy form | Model | Heating capacity/KW（Standard） | Max. input power kW | Air volume(㎡/h) | Heating area/㎡（Room temperature/low temperature） |
|---|---|---|---|---|---|
| WA | MP35PWN2 | 35 | 7 | 7000 | 200 |
| MP38PWN2 | 38 | 7.5 | 8000 | 220 | |
| MP20PWN2 | 20 | 5 | 4000 | 120 | |
| MP25PWN2 | 25 | 6 | 4500 | 145 |
COP is up to 7.0
cooling and dehumidification
Tail-end Restriction free
